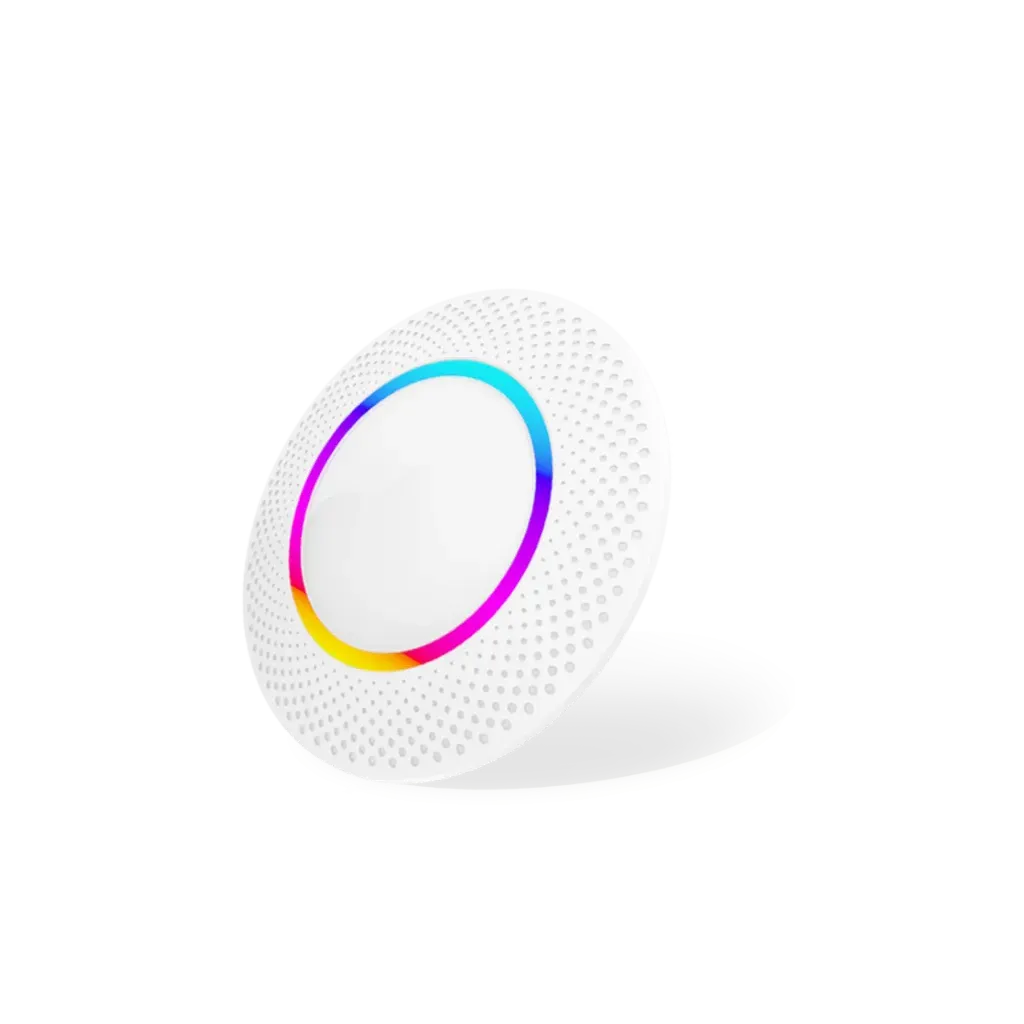

G1 loT Bluetooth® Gateway is a faster and safer gateway with powerful Bluetooth® LE & Wi-Fi CPU and WPA 2.0 enterprise encryption for data security and transmission, G1 collects data from Bluetooth® LE Beacon, sensor and other loT devices, and then sends it to the cloud over Wi-Fi / Ether-net. It's a great option for all industry applications.

Specifications

General Information

- Color : White

- Net Weight : 155g

- Accessory : 1X USB cable, mental fixing and screws

- Power supply (Vcc) : DC 5.0 (+/- 5%) Max. 5.5 Volts

- Storage temperature : -40°C ~ 85°C

- Humidity : Max 95%, non-condensing, relative humidity

WiFi RF Performance

- WiFi Protocols : IEEE 802.11 b/g/n

- WiFi Frequencies : 2.4-2.4835 GHz

- Emitting Power : 17dBm (typical)@ 802.11b , 11.3dBm (typical) @ 802.11g , 8.2dBm (typical) @ 802.11n

- Data Transfer Speed : 802.11n: Up to 300Mbps , 802.11g: Up to 54Mbps , 802.11n: Up to 11Mops

- Transfer Speed : 2T2R 300Mbps

- Minimum receive input level : -87 dBm(typ. with PER <8%@11Mbps) , -70dBm(typ. with PER <10%@54Mbps) , -70dBm(typ. with PER <10%@MCS7)

- Receiving Sensitivity : 270M:-61dBm@10%PER , 135M:-65dBm@10%PER , 108M:-68dBm@10%PER , 54M:-68dBm@10%PER , 11M:-85dBm@10%PER , 6M:-88dBm@10%PER , 1M:-61dBm@10%PER

- Modulate Mode : DBPSK, DQPSK, CCK and OFDM (BPSK/QPSK/16-QAM/64-QAM)

- Network Protocol : HTTP(SSL/ TLS) /MQTT(SSL/ TLS & Proxy) / TCP

- Wireless Encryption : WPA-PSK /WPA2-PSK, WPA-EAP / WPA2-EAP and TKIP

Bluetooth Specifications

- Bluetooth Frequency : 2.4-2.4835 GHz

- Bluetooth Modulation : GFSK

- Emitting Power : 18dBm (max) Note:The actual emitting power may vary from country and location depending on its laws and regulations.

- Receiving Sensitivity : -108 dBm @1Mbps, 0.1 %BER

- Numbers of Received Broadcast Packets : About 400 packets per second

- Scan Coverage : About 300 meters of covered radius (open area)
